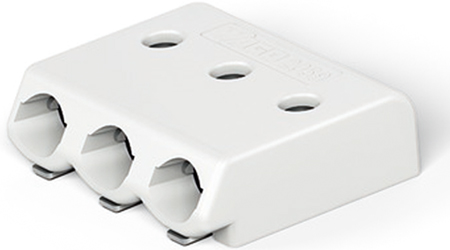

General Technical Data



Name Value Unit

No. of Poles  3

Pin Spacing  3 mm (0.118 in %)

Total number of connection points  3

Total number of potentials  3

Color  white

Weight [g]  0.503   g



Material Data



Name Value Unit

Material group  I

Insulating material  Polyphtalamide glass fiber (PPA-GF)

Flammability rating per UL 94  V0

Contact material  Copper alloy

Contact plating  tin-plated

Fire load [MJ]  0.004   MJ



Connection Data



Name Value Unit

Number of individual connection objects at the product  1



Electrical Data



Name Value Unit

Ratings according to 1  IEC/EN 60664-1



Mechanical Data



Name Value Unit

Solder pad dimensions [mm]  2.5 x 1.4   mm

Spulendurchmesser der Gurtverpackung [mm]  330   mm

Gurtbreite [mm]  16   mm

Width  8.9 mm / 0.35 in

Height  2.7 mm / 0.106 in

Length  7.9 mm / 0.311 in



Miscellaneous



Name Value Unit

Overvoltage category EN 1  III

Pollution degree (1)  2

Rated voltage EN (1) [V]  160   V

Rated surge voltage (1) [kV]  2.5   kV

Nominal current [A]  3   A

Overvoltage category EN 2  II

Degree of pollution (2)  2

Rated voltage EN (2) [V]  320   V

Rated surge voltage (2) [kV]  2.5   kV

Nominal current (2) [A]  3   A

Overvoltage category EN 3  III

Degree of pollution (3)  3

Rated voltage EN (3) [V]  63   V

Rated surge voltage (3) [kV]  2.5   kV

Nominal current (3) [A]  3   A

Connection technology (1)  PUSH WIRE®

Solid sizes 1  0.14 … 0.34 mm² / 26 … 22 AWG

Strip length 1  4 … 5.5 mm / 0.16 … 0.22 in

solid, connectable 2  0.5 mm² / AWG

Strip length 2  6 … 7.5 mm / 0.24 … 0.3 in

Note (conductor cross-section)  No reconnection of smaller conductor cross-sections
