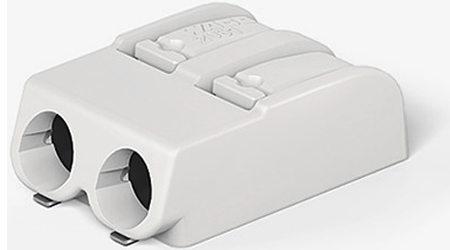

万可WAGO 2061-602/998-404
General Technical Data
Name Value Unit
No. of Poles 2
Pin Spacing 6 mm (0.24 in %)
Total number of connection points 2
Total number of potentials 2
Color white
Limit temperature range -60 C … 105 C
Weight [g] 1.456 g
Material Data
Name Value Unit
Material group I
Insulating material Polyphtalamide glass fiber (PPA-GF)
Flammability rating per UL 94 V0
Contact material Copper alloy
Contact plating tin-plated
Fire load [MJ] 0.016 MJ
Connection Data
Name Value Unit
Number of individual connection objects at the product 1
Electrical Data
Name Value Unit
Ratings according to 1 IEC/EN 60664-1
Mechanical Data
Name Value Unit
Solder pad dimensions [mm] 6.5 x 2.1 mm
Spulendurchmesser der Gurtverpackung [mm] 330 mm
Gurtbreite [mm] 24 mm
Width 11.7 mm / 0.461 in
Height 5.6 mm / 0.22 in
Height from the surface 5.6 mm / 0.22 in
Length 15.8 mm / 0.622 in
Miscellaneous
Name Value Unit
Overvoltage category EN 1 III
Pollution degree (1) 2
Rated voltage EN (1) [V] 320 V
Rated surge voltage (1) [kV] 4 kV
Nominal current [A] 17.5 A
Overvoltage category EN 2 II
Degree of pollution (2) 2
Rated voltage EN (2) [V] 630 V
Rated surge voltage (2) [kV] 4 kV
Nominal current (2) [A] 17.5 A
Overvoltage category EN 3 III
Degree of pollution (3) 3
Rated voltage EN (3) [V] 250 V
Rated surge voltage (3) [kV] 4 kV
Nominal current (3) [A] 17.5 A
Connection technology (1) Push-in CAGE CLAMP®
Solid sizes 1 0.5 … 1.5 mm² / 20 … 16 AWG
Fine-stranded wires 1 0.5 … 1.5 mm² / 20 … 16 AWG
Fine-stranded wires with insulated ferrule 1 0.5 … 0.75 mm² / …
Fine-stranded wires with uninsulated ferrule 1 0.5 … 0.75 mm² / …
Strip length 1 7 … 10 mm / 0.28 … 0.39 in
