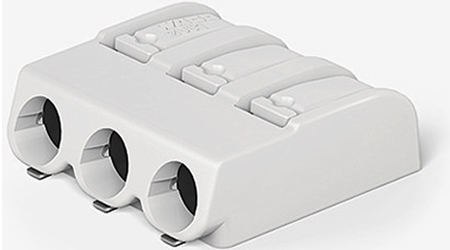

SMD terminal block with push-buttons in tape-and-reel packing; 3-pole; Pin spacing 6 mm / 0.236 in



SMD terminal blocks with Push-in CAGE CLAMP? and push-buttons

Just 5.6 mm tall

Push-in termination of solid and ferruled conductors

Push-buttons simplify termination/removal of all conductor types

Available in tape-and-reel packaging for automated assembly



Miscellaneous



Name Value Unit

No. of Poles  3

Pin Spacing  6 mm (0.24 in %)

Total number of connection points  3

Total number of potentials  3

Color  white

Ratings according to 1  IEC/EN 60664-1

Overvoltage category EN 1  III

Pollution degree (1)  2

Rated voltage EN (1) [V]  320   V

Rated surge voltage (1) [kV]  4   kV

Nominal current [A]  17.5   A

Overvoltage category EN 2  II

Degree of pollution (2)  2

Rated voltage EN (2) [V]  630   V

Rated surge voltage (2) [kV]  4   kV

Nominal current (2) [A]  17.5   A

Overvoltage category EN 3  III

Degree of pollution (3)  3

Rated voltage EN (3) [V]  250   V

Rated surge voltage (3) [kV]  4   kV

Nominal current (3) [A]  17.5   A

Connection technology (1)  Push-in CAGE CLAMP?

Solid sizes 1  0.5 … 1.5 mm2 / 20 … 16 AWG

Fine-stranded wires 1  0.5 … 1.5 mm2 / 20 … 16 AWG

Fine-stranded wires with insulated ferrule 1  0.5 … 0.75 mm2 / …

Fine-stranded wires with uninsulated ferrule 1  0.5 … 0.75 mm2 / …

Strip length 1  7 … 10 mm / 0.28 … 0.39 in

Strip length up to [inch] [in]  0.31   in

Material group  I

Insulating material  Polyphtalamide glass fiber (PPA-GF)

Flammability rating per UL 94  V0

Limit temperature range  -60 C … 105 C

Contact material  Copper alloy

Contact plating  tin-plated

Weight [g]  2.4   g

Width  17.7 mm / 0.697 in

Height  5.6 mm / 0.22 in

Height from the surface  5.6 mm / 0.22 in

Length  15.8 mm / 0.622 in
