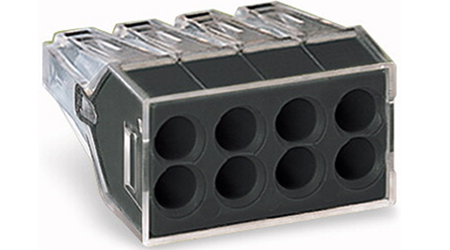

万可WAGO 773-108
Name Value Unit
No. of Poles 8
Total number of connection points 8
Total number of potentials 1
Color transparent
Pollution degree (1) 2
Rated voltage EN (1) [V] 400 V
Rated surge voltage (1) [kV] 4 kV
Nominal current [A] 24 A
Connection technology (1) PUSH WIRE®
Connection type CAGE CLAMP®
Conductor type (1) solid
Cross section from (1) [mm²] 0.75 mm²
Cross section up to (1) [mm²] 2.5 mm²
Cross section from (1) [AWG] 18 AWG
Cross section up to (1) [AWG] 12 AWG
Conductor type (2) stranded
Cross section from (2) [mm²] 1.5 mm²
Cross section up to (2) [mm²] 2.5 mm²
Cross section from (2) [AWG] 16 AWG
Cross section up to (2) [AWG] 12 AWG
Stripped length from (1) [mm] 12 mm
Stripped length up to (1) [mm] 12 mm
Stripped length (1) [in] 0.47 in
Type of wiring Side-entry wiring
Fire load [MJ] 0.099 MJ
Weight [g] 4.6 g
Width [mm] 24 mm
Width [in] 0.945 in
Height [mm] 13.1 mm
Height [in] 0.516 in
Length [mm] 19.5 mm
Length [in] 0.768 in
Safety information 1 In grounded power lines
