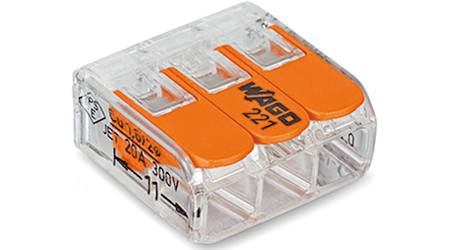

万可WAGO 221-413
Miscellaneous
Name Value Unit
Total number of connection points 3
Total number of potentials 1
Color transparent
Ratings according to 1 EN 60664
Pollution degree (1) 2
Rated voltage EN (1) [V] 450 V
Rated surge voltage (1) [kV] 4 kV
Nominal current [A] 32 A
Connection technology (1) CAGE CLAMP®
Nominal cross section 1 4 mm²
Solid sizes 1 0.2 … 4 mm² / 24 … 12 AWG
stranded, connectable 1 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded wires 1 0.14 … 4 mm² / 24 … 12 AWG
Strip length 1 11 mm / 0.43 in
Type of wiring Side-entry wiring
Flammability rating per UL 94 V2
Weight [g] 2.527 g
Width 18.7 mm / 0.736 in
Height 8.3 mm / 0.327 in
Length 18.6 mm / 0.732 in
Safety information 1 In grounded power lines
